Board_Assembly

ESP32 DEVKIT_V1 Board

Please pay attention to the position of the antenna and ensure that the ESP32 DEVKT V1 / ESP32_S3 is correctly inserted onto the base board

../_images/%E5%AE%89%E8%A3%85%E5%AF%B9%E6%AF%941.jpg
ESP32 DEVKIT_V1 Board / ESP32_S3 is not on the packaging list
../_images/32%E4%B8%BB%E6%8E%A7.jpg

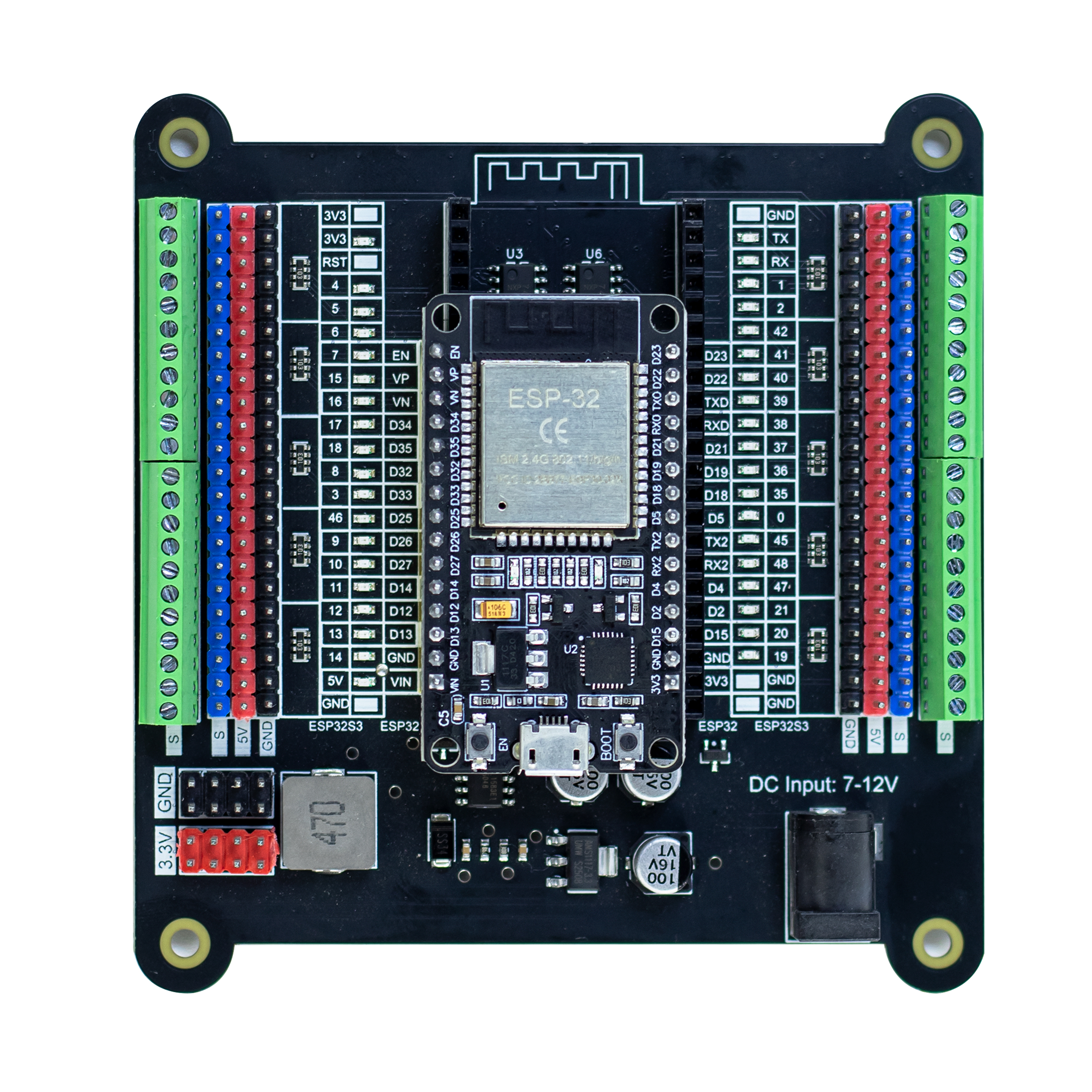

ESP32 DEVKIT V1 Board after Assembly

Note: The S terminal of the breakout board directly connects to the pins of the ESP32 DEVKI TV1 board.

ESP32_S3 Board

../_images/S3%E4%B8%BB%E6%8E%A7.jpg

ESP32_S3 Board after Assembly

Note: The S terminal of the breakout board directly connects to the pins of the ESP32_S3 board.

POWER

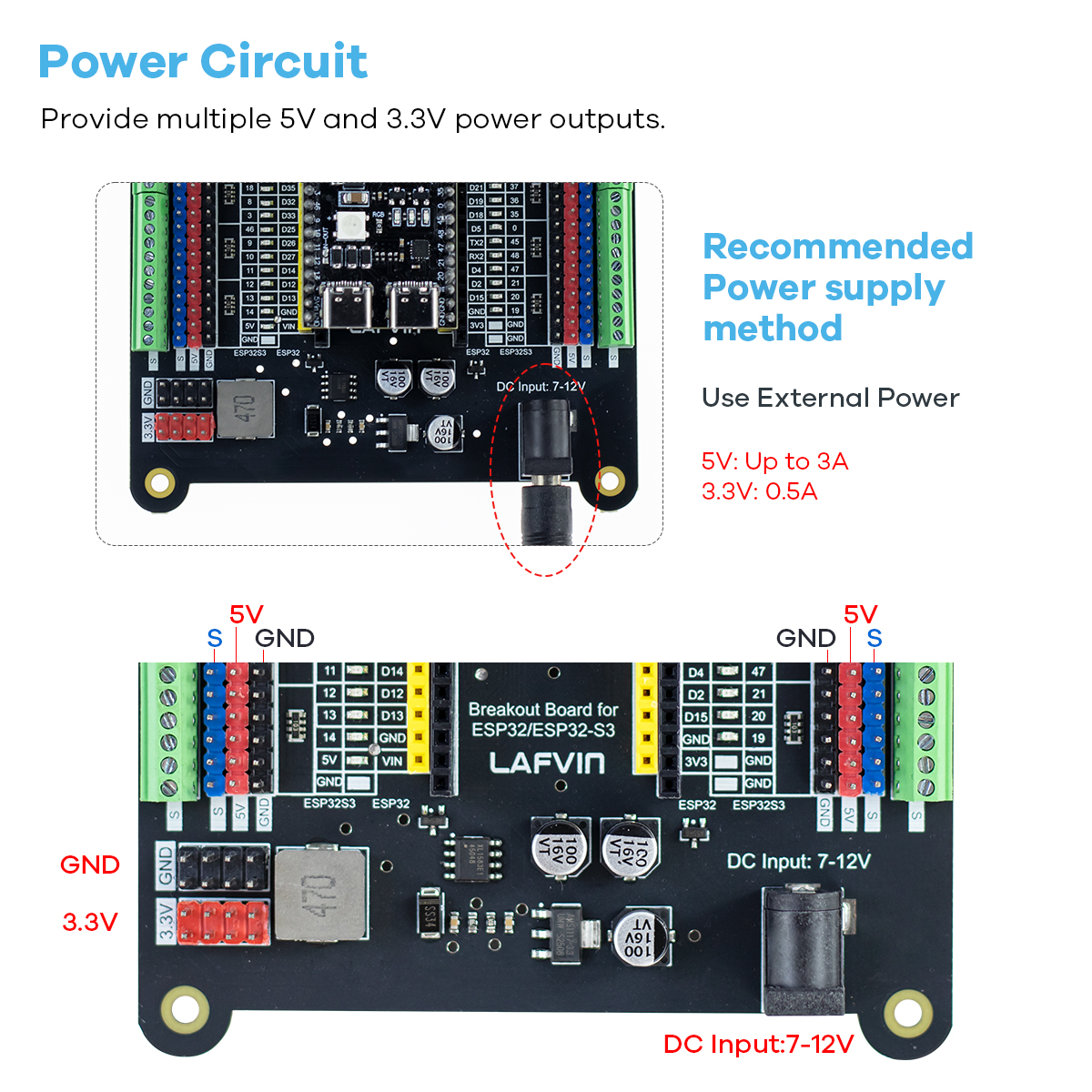

ESP32 DEVKIT_V1 and ESP32_S3 needs 5v power supply. In this tutorial, we need connect ESP32 to computer via USB cable to power it and program it. However, during the operation of the breakout board, we strongly recommend powering it with an external power supply.
