ESP32 DEVKIT V1_Blink

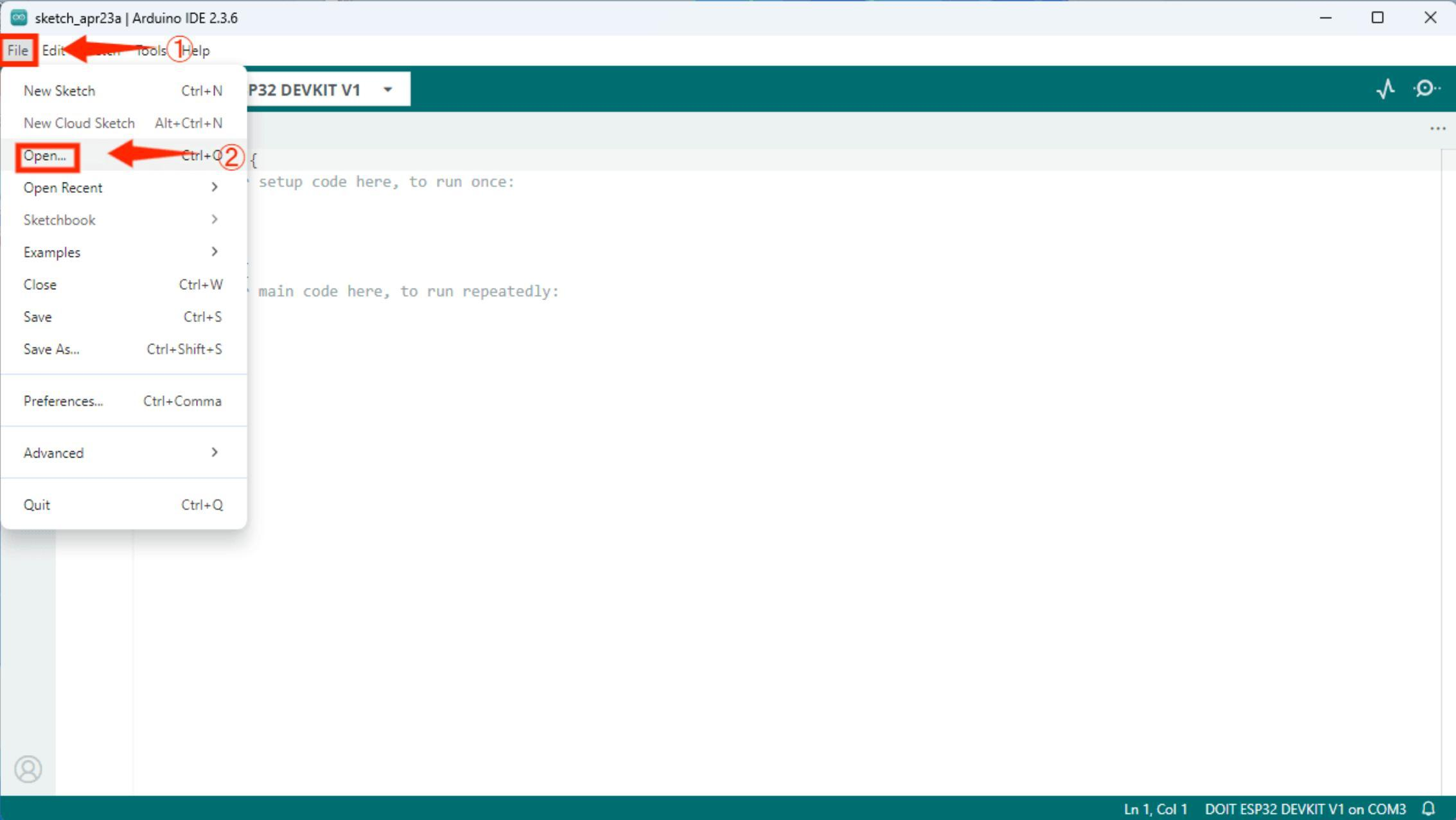

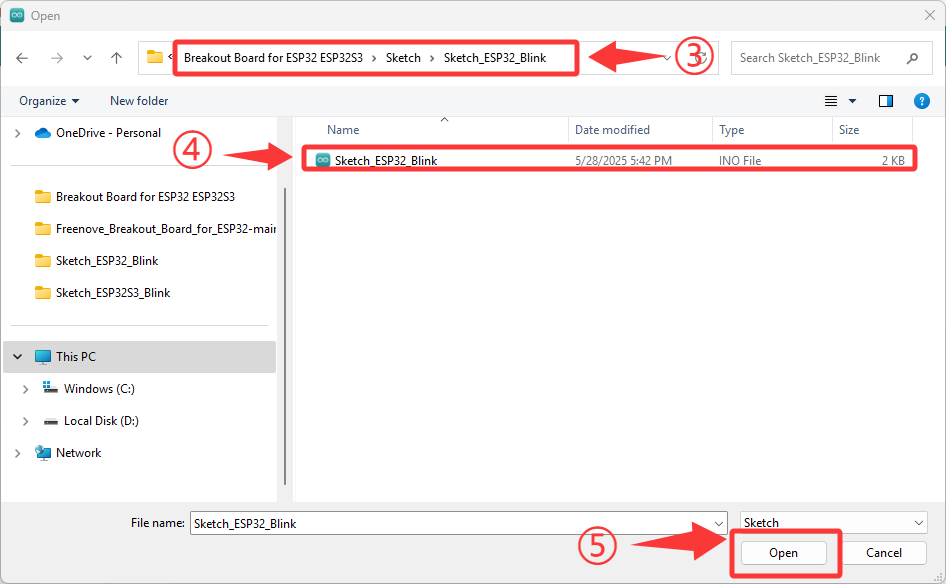

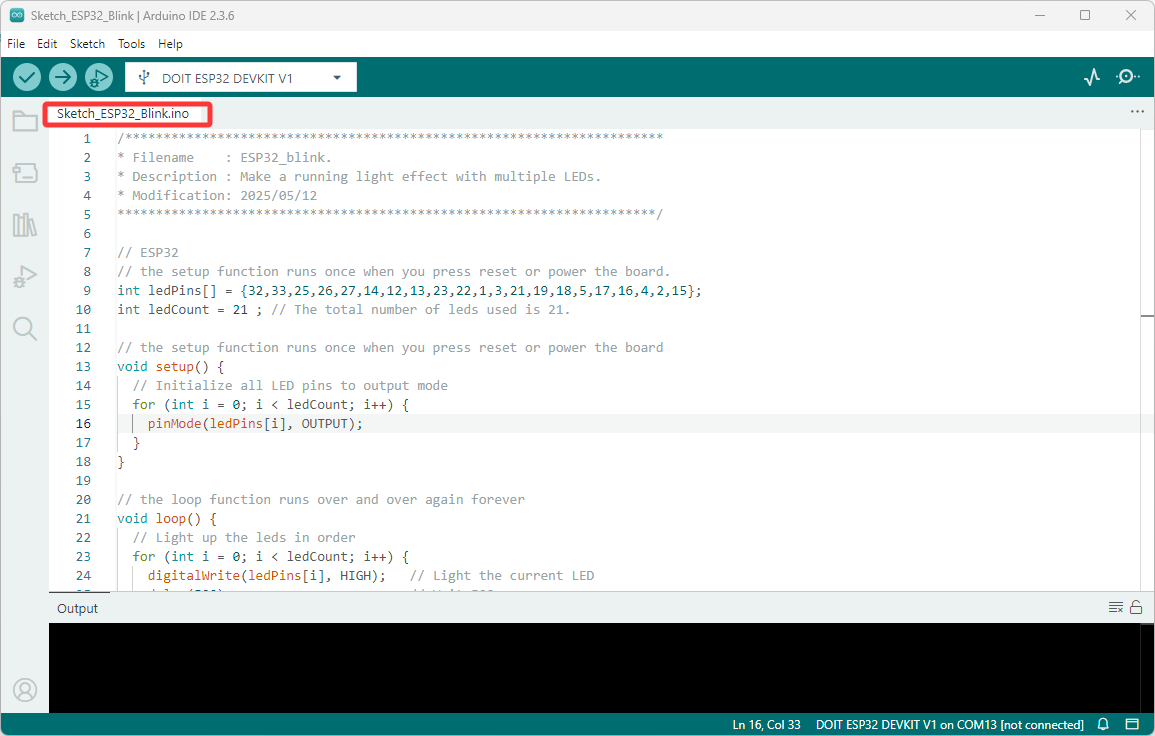

①Start Arduino IDE, open the code in File->Open…->Breakout Board for ESP32 ESP32S3>Sketch>ESP32_Sketch_ESP32_Blink>Sketch_ESP32_Blink

../_images/ESP32%E6%B5%81%E6%B0%B4%E7%81%AF%E7%A8%8B%E5%BA%8F%E6%89%93%E5%BC%80.png ../_images/32%E7%A8%8B%E5%BA%8F%E8%B7%AF%E5%BE%84.png ../_images/32%E7%A8%8B%E5%BA%8F.png

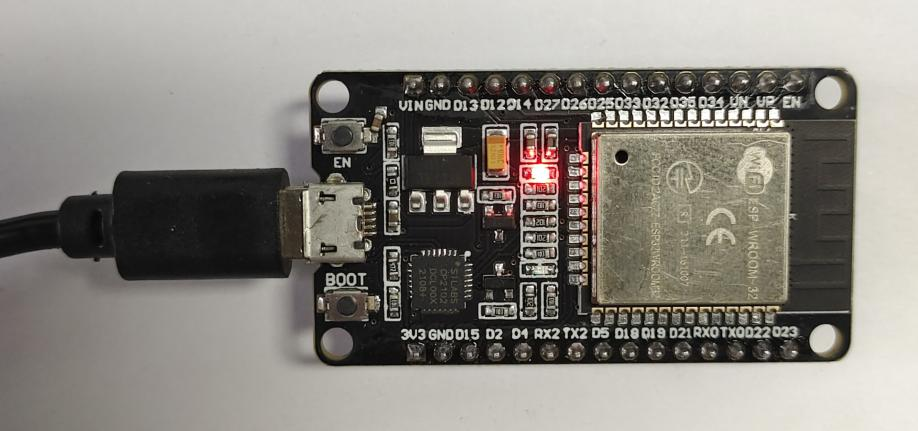

②Use USB cable to connect the ESP32 DEVKIT_V1 board to the computer.

../_images/32%E4%BE%9B%E7%94%B5.png

③Select your Board in Tools > Board menu > esp32 >DOIT ESP32 DEVKIT_V1

../_images/32%E6%9D%BF%E5%AD%90%E9%80%89%E6%8B%A9.png

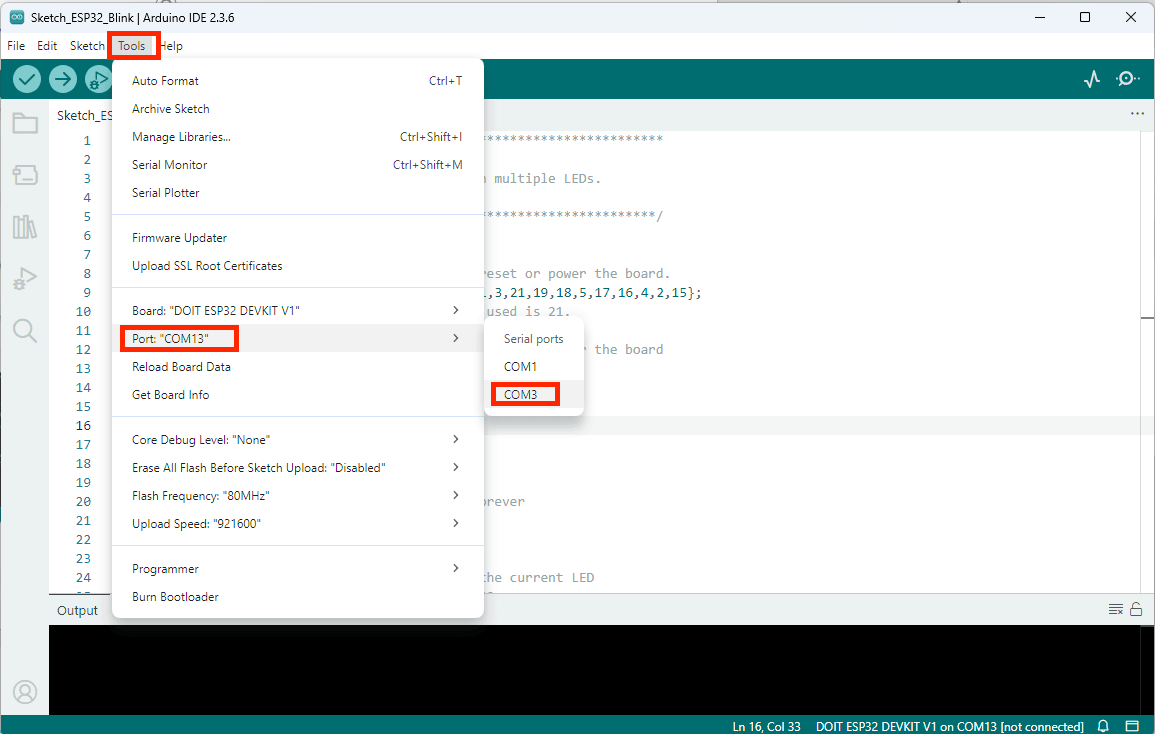

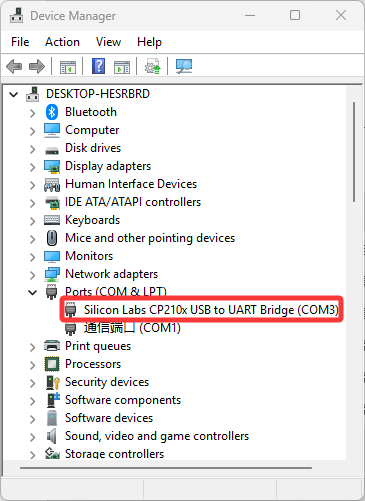

④Select the Port (if you don’t see the COMPort in your Arduino IDE, you need to lnstall cp2101 drivers windows

../_images/32%E7%AB%AF%E5%8F%A3%E9%80%89%E6%8B%A9.png ../_images/32%E7%AB%AF%E5%AD%90%E6%9F%A5%E7%9C%8B.png

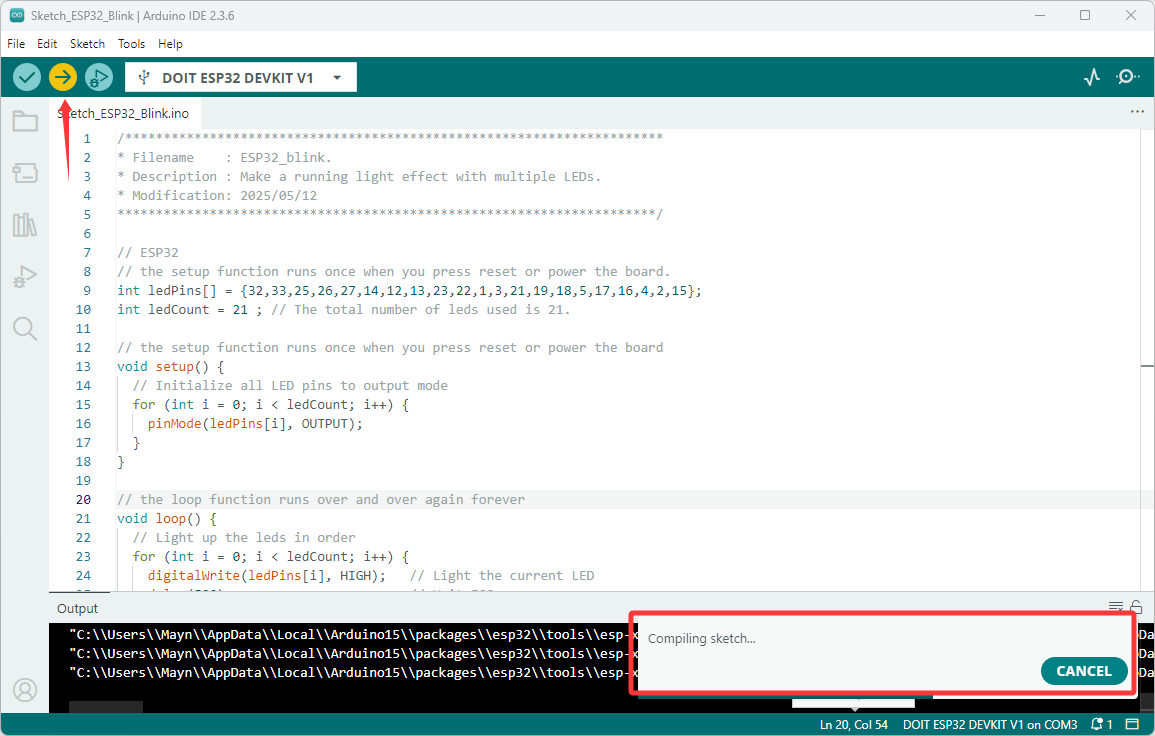

⑤Click the Upload button to your board

../_images/%E4%B8%8B%E8%BD%BD%E9%94%AE.png

in the Arduino IDE.Wait a few seconds while the code compile sand up loads

../_images/%E4%B8%8B%E8%BD%BD%E7%A8%8B%E5%BA%8F%E4%B8%AD.png

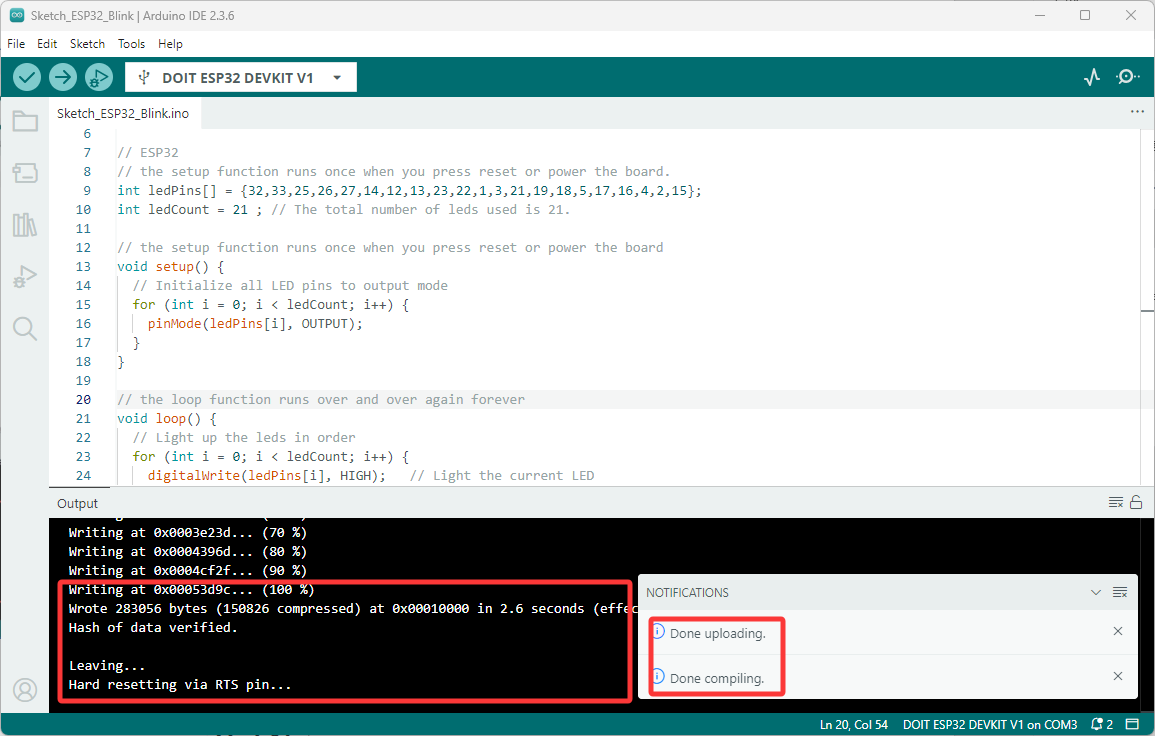

If everything went as expected,you should see a “Done uploading.”message.If the ArduinoID Ereports errors may be you missed some steps. Arduino getting started guideis as follows

Errors when uploading a sketch

Getting Started with Arduino products

../_images/%E4%B8%8B%E8%BD%BD%E7%A8%8B%E5%BA%8F%E6%88%90%E5%8A%9F.png
